Top Rated C-Aire FR WS50CFM 50 CFM Water Separator

Product Description

C-Aire FR WS50CFM 50 CFM Water Separator

C-Aire FR WS50CFM

• Handles up to 50 CFM
• Removes 100% of Condensate at Point of Water Separator
• Easy Access to Float Drain

Notes:

• Install Water Separator as Far Down Stream as Possible – Ideally One Water Separator at Each Point of Use
• Removes 100% of Condensate, but Additional Condensation May Occur Downstream

To be installed at point of use to remove liquid condensate and particulates
(larger than 10 micron) from compressed air.

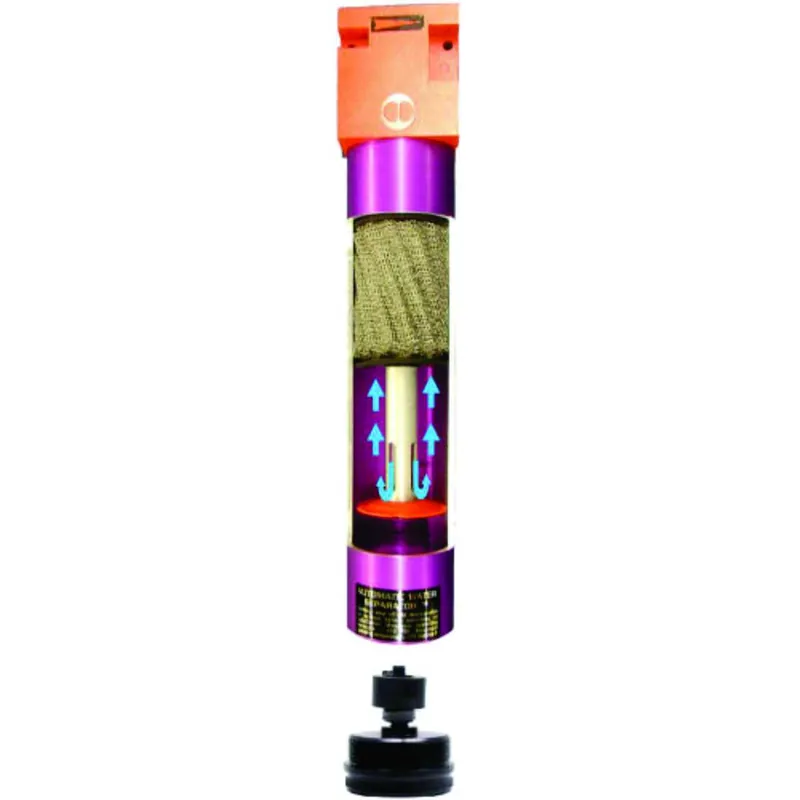

A. Air flows down inner tube and reverses direction when it hits the baffle
plate. Air velocity is slowed which allows gravity to remove the
bulk liquids
B. Air then travels upwards through the stainless steel mesh which
removes particulates and coalesces water molecules into larger
droplets which fall to the bottom
C. Float drain allows liquid to drain out the bottom (Float drain can be
easily accessed by unscrewing the bottom cap)
