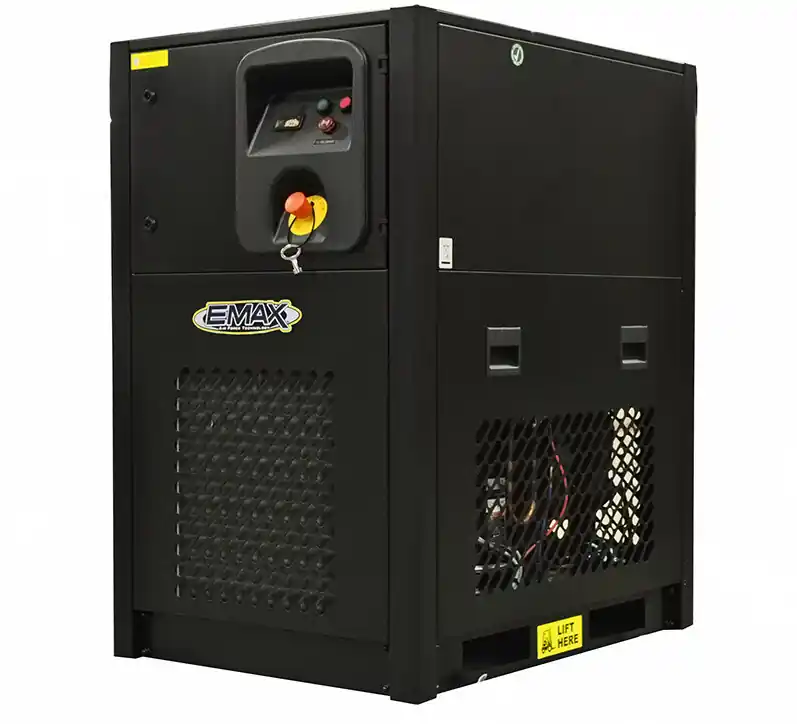

Authentic EMAX EDRCF4600288 288 CFM Refrigerated Air Dryer 460 Volt Three Phase

Product Description

EMAX EDRCF4600288 288 CFM Refrigerated Air Dryer 460 Volt Three Phase

NOTE: Residential Delivery Requires Liftgate and Noted as Residential

 EDRCF4600288 Features and Benefits

• Purifies compressed air by chilling to condense moisture
• Condensate is drained carrying oil & dirt partials away from the air
• Auto drain system – eliminates the need for daily maintenance
• Refrigerant pressure – gauge clearly monitors performance of dew point temp (models under 400 CFM)
• PLC Display (models 400 CFM & above)
• Outlet air baffle heater –  prevents condensation on outlet air piping
• Heavy duty steel cabinet
• Trouble free operation refrigerated air inlet inner cooler for high temp cooling
• Top mounted condenser & fan motor
• Environmentally friendly 134A refrigerant

EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger.  Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. EMAX designed them with Non-corrosive inner and after cooler. EMAX dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance.  EMAX Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

EDRCF4600288 Specs

• Handles up to 288 CFM
• 140 Degree Inlet Temp
• 122 Max Ambient Temp
• R134a Refrigerant
• 37 – 50 Degree Dew Point
• 1 1/2″ Connections
• 460 Volt Three Phase
• Built in Coalescing Filter
• Auto Drain
• Dimensions: 32″L x 42″W x 54″H
